Description

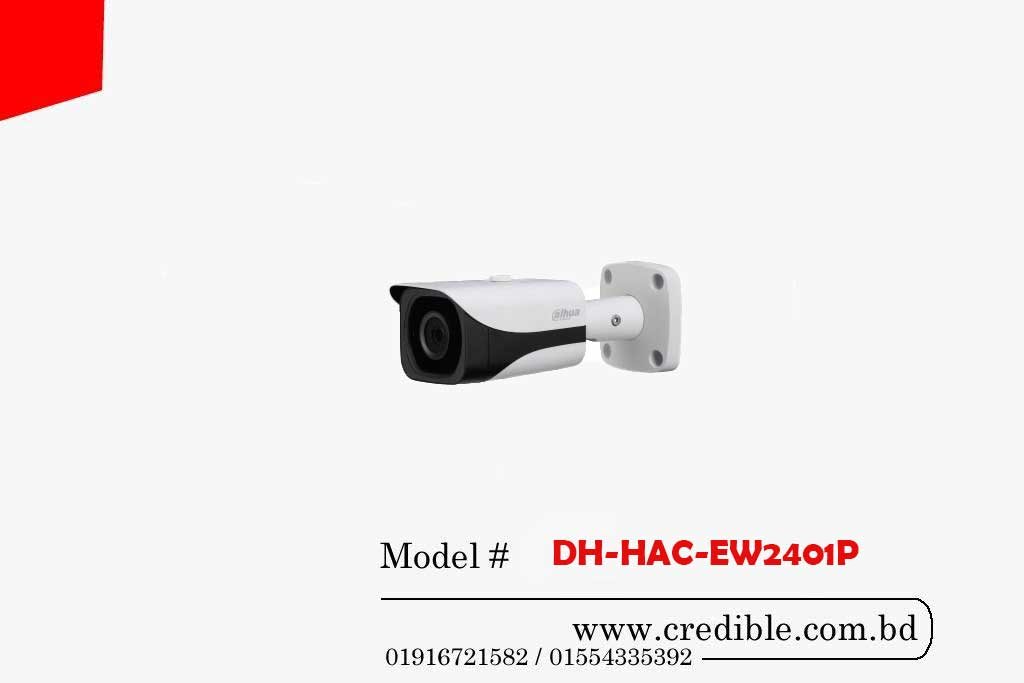

DH-HAC-EW2401P – Buy Dahua CCTV from Dahua CC Camera Store in Bangladesh.
Dahua dealer in Bangladesh is presenting the best CC Camera Brand in BD.
DH-HAC-EW2401P price
Specification:
| General | ||
| Casing | Aluminium | |
| Dimensions | 180mm×70mm×70mm (7.09″×2.76″×2.76″) | |
| Weight | 0.40kg | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
|
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH | |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH | |
| Power Supply | 12V DC ±25% | |
| Power Consumption | Max 5.9W (12V DC, IR on) | |
| Camera | ||
| Image Sensor | 1/3″ CMOS | |
| Effective Pixels | 2688(H)×1520(V), 4.1MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s |
|
| Minimum Illumination | 0.01Lux/F1.5, 30IRE, 0Lux IR on | |
| S/N Ratio | More than 65dB | |
| IR Distance | Up to 40m (130feet) | |
| IR On/Off Control | Auto / Manual | |
| IR LEDs | 2 | |
| Lens | ||
| Lens Type | Fixed lens / Fixed iris | |
| Mount Type | Board-in | |
| Focal Length | 3.6mm | |
| Max Aperture | F1.5 | |
| Angle of View | H: 79° (99.7°/48.6°) | |
| Close Focus Distance | 1500mm (900mm, 1700mm)
59.06” (35.43”, 66.93”) |
|
| Video | ||
| Resolution | 4MP (2560×1440) | |
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P | |
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output | |
| Day/Night | Auto (ICR) / Manual | |
| BLC Mode | BLC / HLC / WDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D/3D | |
| Warranty | ||
| Warranty | 1 Year | |
