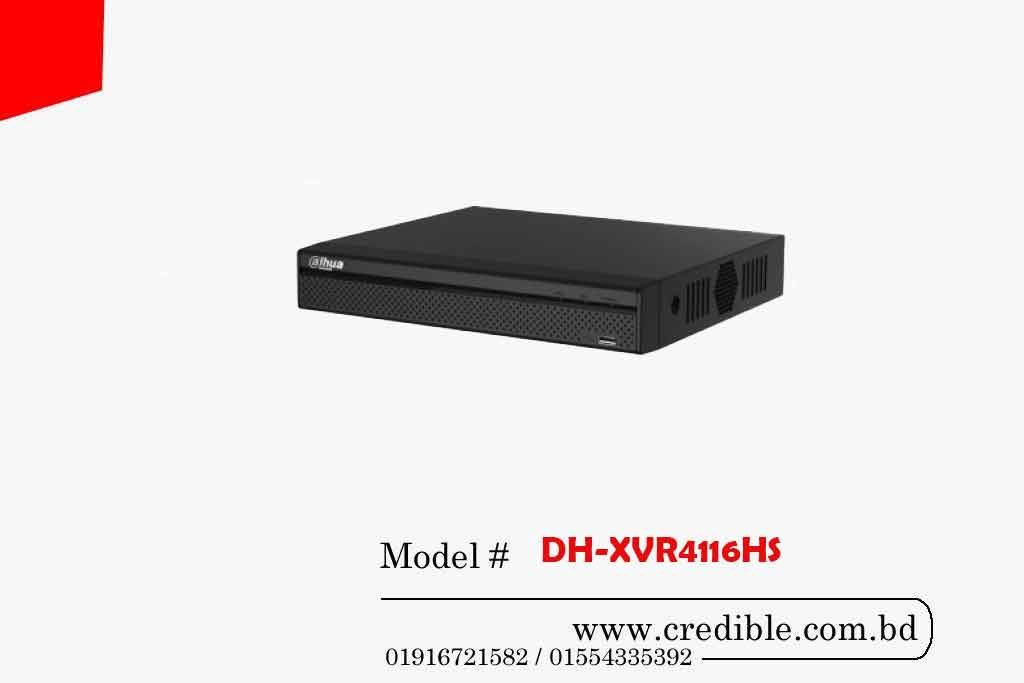

DAHUA DH-XVR4116HS

৳ 9,340

* Model: DAHUA DH-XVR4116HS 16 Channel
* Interface: 1 HDMI,1 VGA
* Image System: NTSC,PAL
* HDD Support: 1HDD(Upto 6TB)

Brand: Dahua Camera

Description

DH-XVR4116HS – Buy Dahua XVR  from Dahua CC Camera Store in Bangladesh.

Dahua dealer in Bangladesh is presenting the best CC Camera Brand in BD.



Dahua XVR DH-XVR4116HS price



Specification:



System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input N/A
Relay Output N/A
Tracking Trigger Event N/A
Playback and Backup
Playback 4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 6TB capacity
HDD Mode Single
eSATA N/A
Auxiliary Interface
Front Cover N/A
USB 2 USB Ports (2 USB 2.0)
RS232 N/A
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input 4/8/16 Channel
IP Camera Input 4+1: each channel up to 2MP

8+2/16+2:each channel up to 5MP

Audio In/Out 1/1
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream:

4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~25/30fps)

Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
