Description

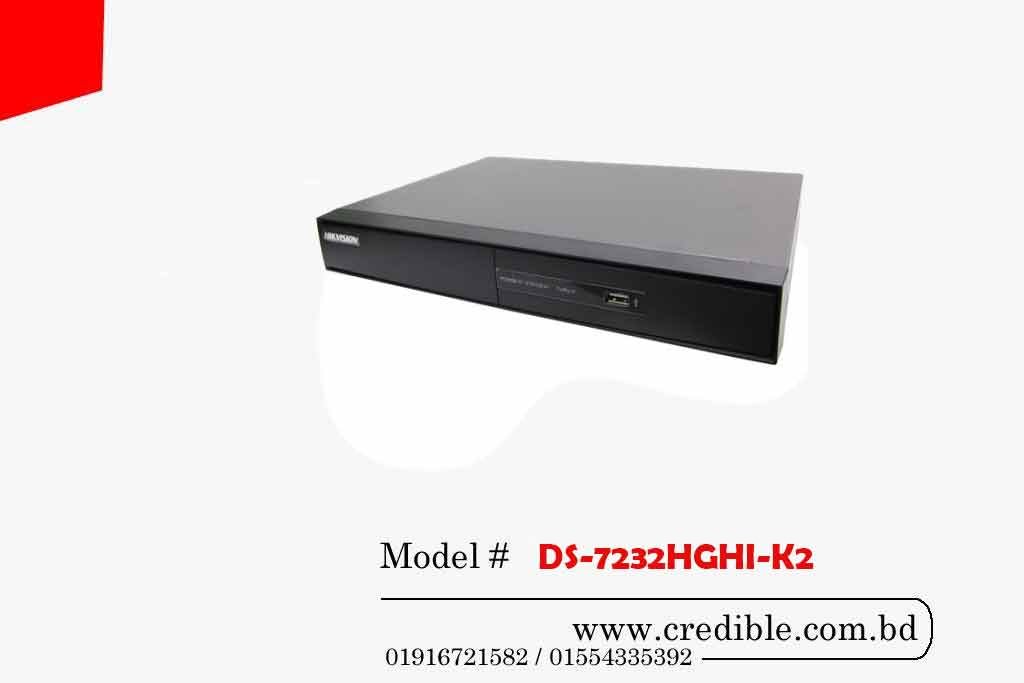

DS-7232HGHI-K2 – Buy Hikvision DVR from Hikvision CC Camera Store in Bangladesh.
Hikvision dealer in Bangladesh is presenting the best CC Camera Brand in BD.
Hikvision DVR DS-7232HGHI-K2 price
Specification:
Model |
DS-7232HGHI-K2 |
|
|---|---|---|
Video/Audio Input |
||
Audio Input: |
1-ch |
|
Video Compression: |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input: |
32-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
Video Input Interface: |
BNC (1.0 Vp-p, 75Ω) |
|
Audio Compression: |
G.711u |
|
Audio Input Interface: |
RCA (2.0 Vp-p, 1 kΩ) |
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
|
Video/Audio Output |
||
CVBS Output: |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 |
|
HDMI/VGA Output: |
HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60HzVGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
Recording resolution: |
1080p/720p/VGA/WD1/4CIF/CIF |
|
Frame Rate: |
Main stream:For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:For 1080p and 720p stream access: CIF/QVGA@15fpsFor standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) |
|
Video Bit Rate: |
32 Kbps ~ 4 Mbps |
|
Stream Type: |
Video/Video&Audio |
|
Two-way Audio: |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
|
Audio Output: |
1-ch RCA(Linear, 1kΩ) |
|
Audio Bit Rate: |
64kbps |
|
Dual Stream: |
Support |
|
Synchronous Playback: |
16-ch |
|
Network management |
||
Remote connections: |
128 |
|
Network protocols: |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
Hard Disk Driver |
||
Interface Type: |
2 SATA Interfaces |
|
Capacity: |
Up to 10 TB capacity for each disk |
|
External Interface |
||
Network Interface: |
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
USB Interface: |
1 USB 2.0 Interface & 1 USB 3.0 Interface |
|
General |
||
Power Supply: |
12 VDC |
|
Consumption: |
≤ 18 W |
|
Working Temperature: |
-10 oC to +55 oC (14 oF to 131 oF) |
|
Working Humidity: |
10% to 90% |
|
Dimensions: |
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
|
Weight: |
≤ 2.2 kg (4.9 lb) |
|
